COMBUSTABLE GAS DETECTORS

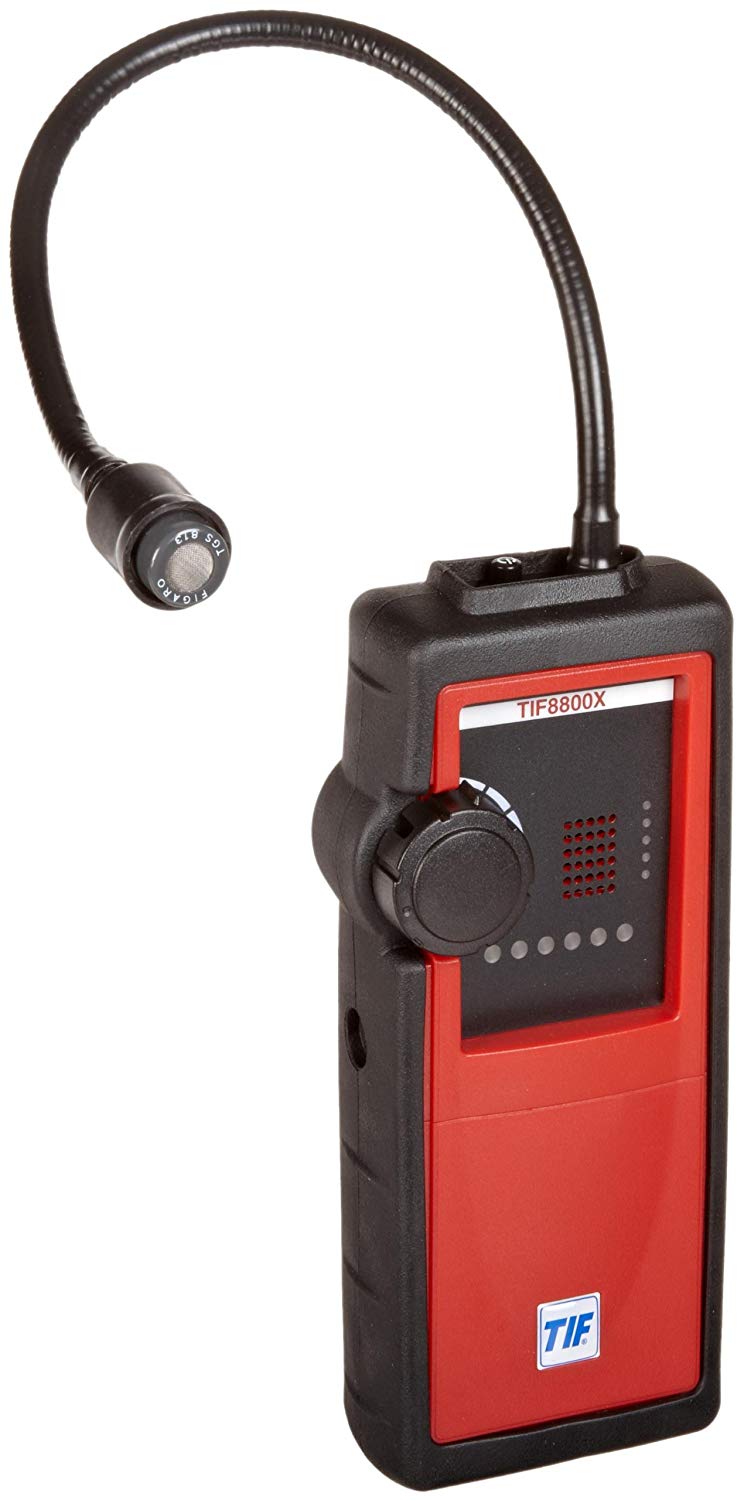

TIF8800X

  • Loud audible alert
  • Automatic calibration
  • APPLICATIONS

    The TIF8800X may be used in almost any situation where a combustible gas, vapor, or residue needs to be found. An ideal instrument for pinpointing combustible gas leaks in commercial, residential, and industrial applications.

    • Audible “ticking” signal
    • Leak strength indicating LEDs
    • Adjustable sensitivity
    • Cordless operation
    • Fast warm-up
    • Battery status indicator
    • 15 inch flexible probe for hard-to-reach areas
    • One-year warranty
  • INTERNATIONAL MODELS

    TIF8800X-E – 220V

  • REPLACEMENT PARTS

    TIF8801 – Sensor

    TIF8802 – A/C adapter

    TIF8802E – A/C adapter 220V

    TIF8808 – Battery cover

    TIF8809 – Ni Mh battery pack

    TIF8818 – Rubber boot

SPECIFICATIONS

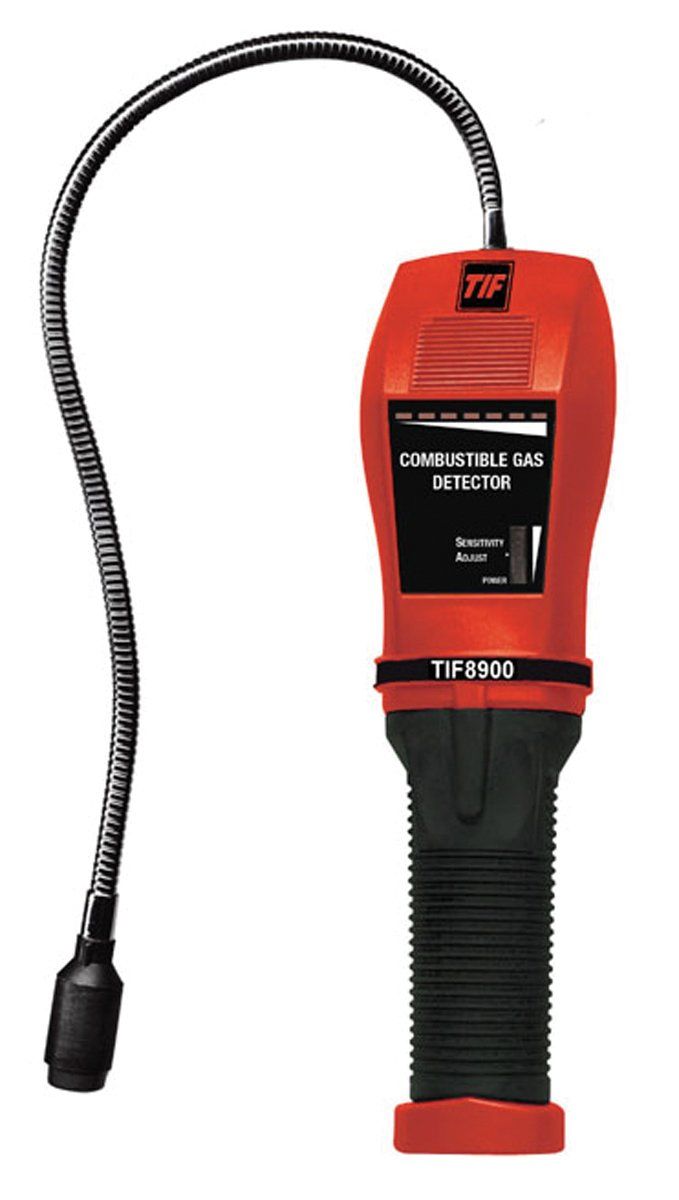

TIF8900

The TIF8900 is a super-sensitive, cordless, combustible gas detector that detects a broad range of natural gases including propane, methanol, butane, and gasoline.
  • APPLICATIONS
    • Solid-state sensor technology, long life, and precision.
    • Adjustable sensitivity levels; as low as 5ppm.
    • Audible “Geiger counter” signal.
    • Rechargeable battery and charger included.
  • INTERNATIONAL MODELS

    TIF8900X-E – 220V

  • REPLACEMENT PARTS

    TIF8801 – Sensing tip.

    TIF8803A – 115V battery charger.

    TIF8805 – Cigarette lighter adapter.

    TIF8806A – Rechargeable Ni-Cad batteries.

    TIF8806B – 220V battery charger.

SPECIFICATIONS

REFRIGERANT LEAK DETECTORS IN CENTRAL ARKANSAS

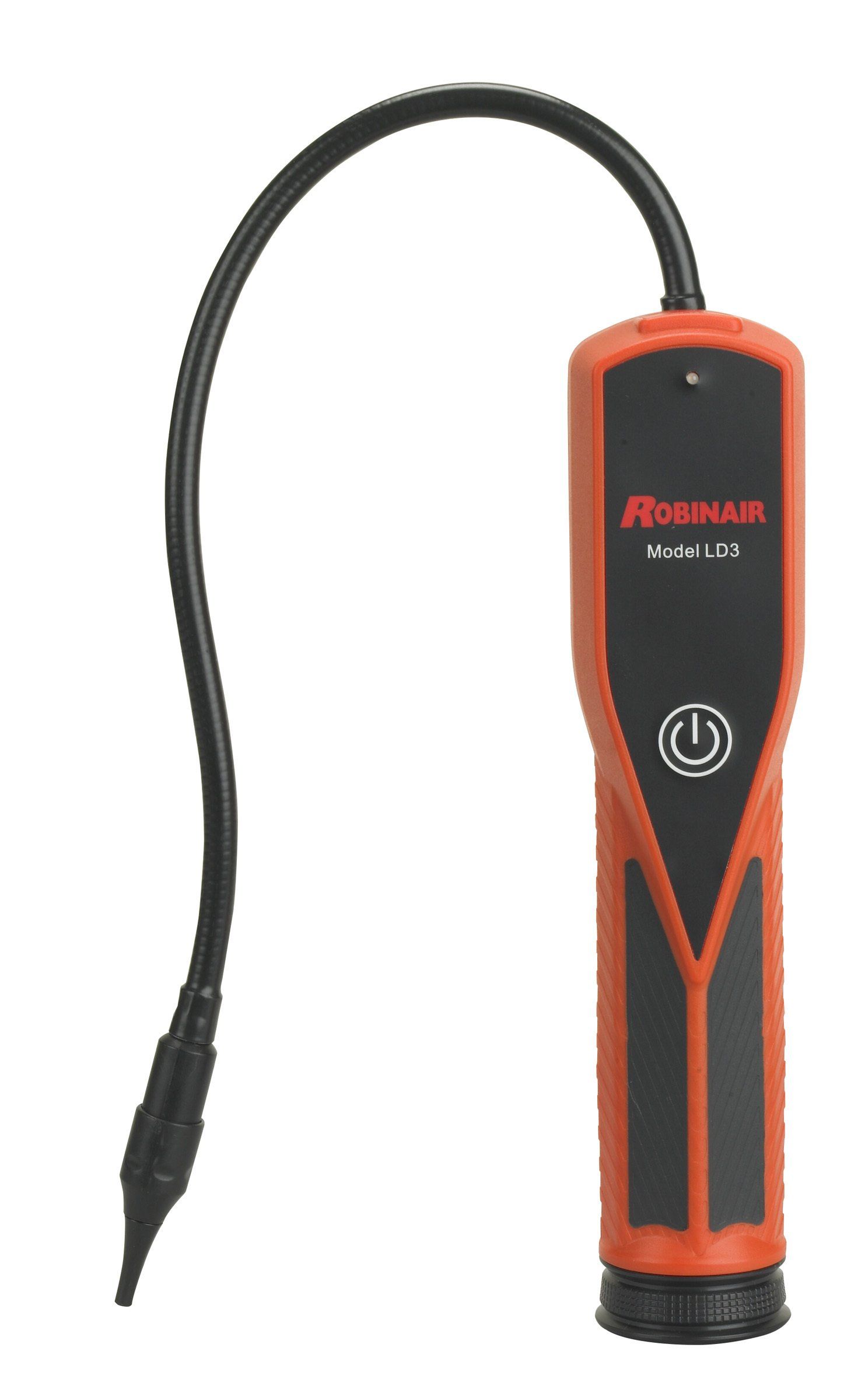

LD3

  • Loud audible alert
  • Automatic calibration
FEATURES

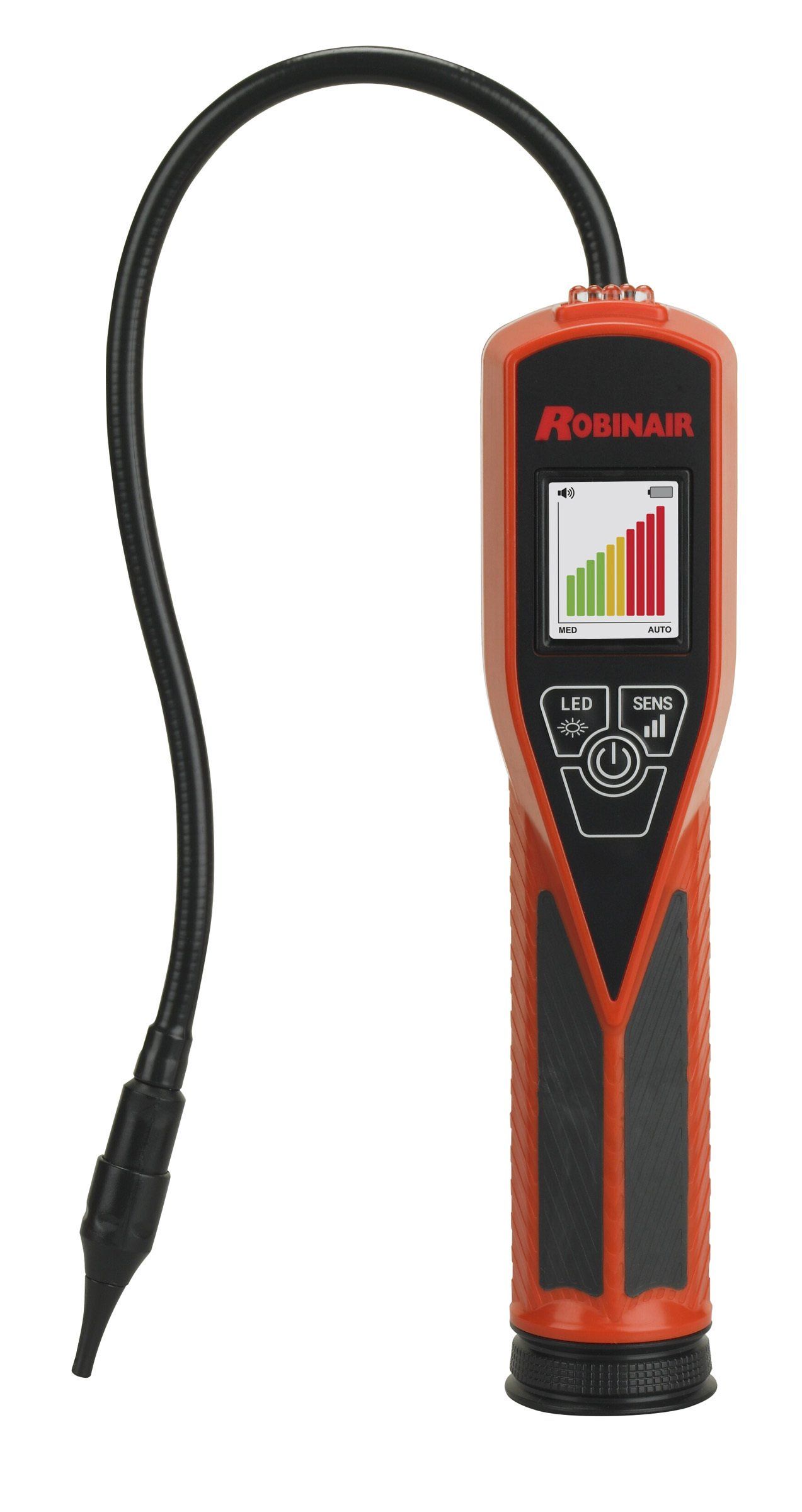

LD5

  • Color display with graphics and visual alerts
  • Bar graph mode helps locate leaks faster
  • Loud audible alert
  • LED inspection lights
  • Automatic and Manual calibration
FEATURES

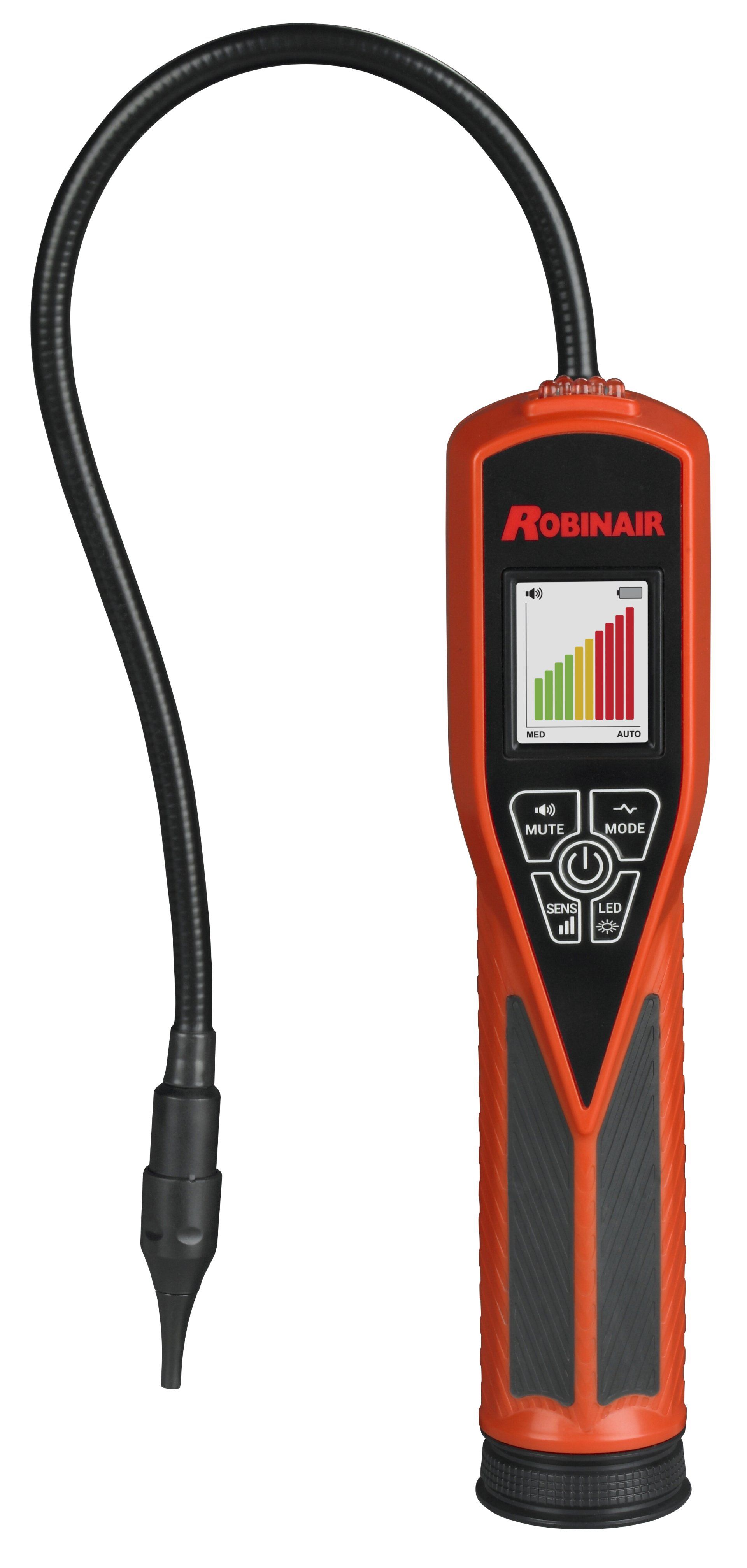

LD7

  • Color display with graphics and visual alerts
  • Bar and Pinpoint graphing modes help locate leaks faster
  • Loud audible alert with mute option
  • UV and Clear LED inspection lights
  • Automatic and Manual calibration
FEATURES

Specifications

LD3 LD5 LD7
Sensitivity .05 oz/yr R-134a, .0123 oz/yr R1234yf .05 oz/yr R-134a, .0123 oz/yr R1234yf .05 oz/yr R-134a, .0123 oz/yr R1234yf
UV Mode - - 3 UV LEDs
UV Wave-length - - 395-415 nanometers
Sensor Life >10 years >10 years >10 years
Response Time Instantaneous Instantaneous Instantaneous
Power Supply 4 AA alkaline batteries included 4 AA alkaline batteries included 4 AA alkaline batteries included
Battery Life 4 hours continuous 4 hours continuous 4 hours continuous
Warm Up Time < 20 seconds < 20 seconds < 20 seconds
Alarm Near Sensor - - Visual Probe LED
LCD Display - 128x160 full color graphic display 128x160 full color graphic display
Probe Length 17 inches 17 inches 17 inches
Weight, lbs 1.5 lbs 1.5 lbs 1.5 lbs
Warranty 2 years (includes sensor) 2 years (includes sensor) 2 years (includes sensor)

UV LEAK DETECTION KITS & ACCESSORIES

Kit comes with: Injection gun. Fluorescent light. Fluorescent leak detection dye. Fluorescent dye cleaner. UV glasses and blow molded case.

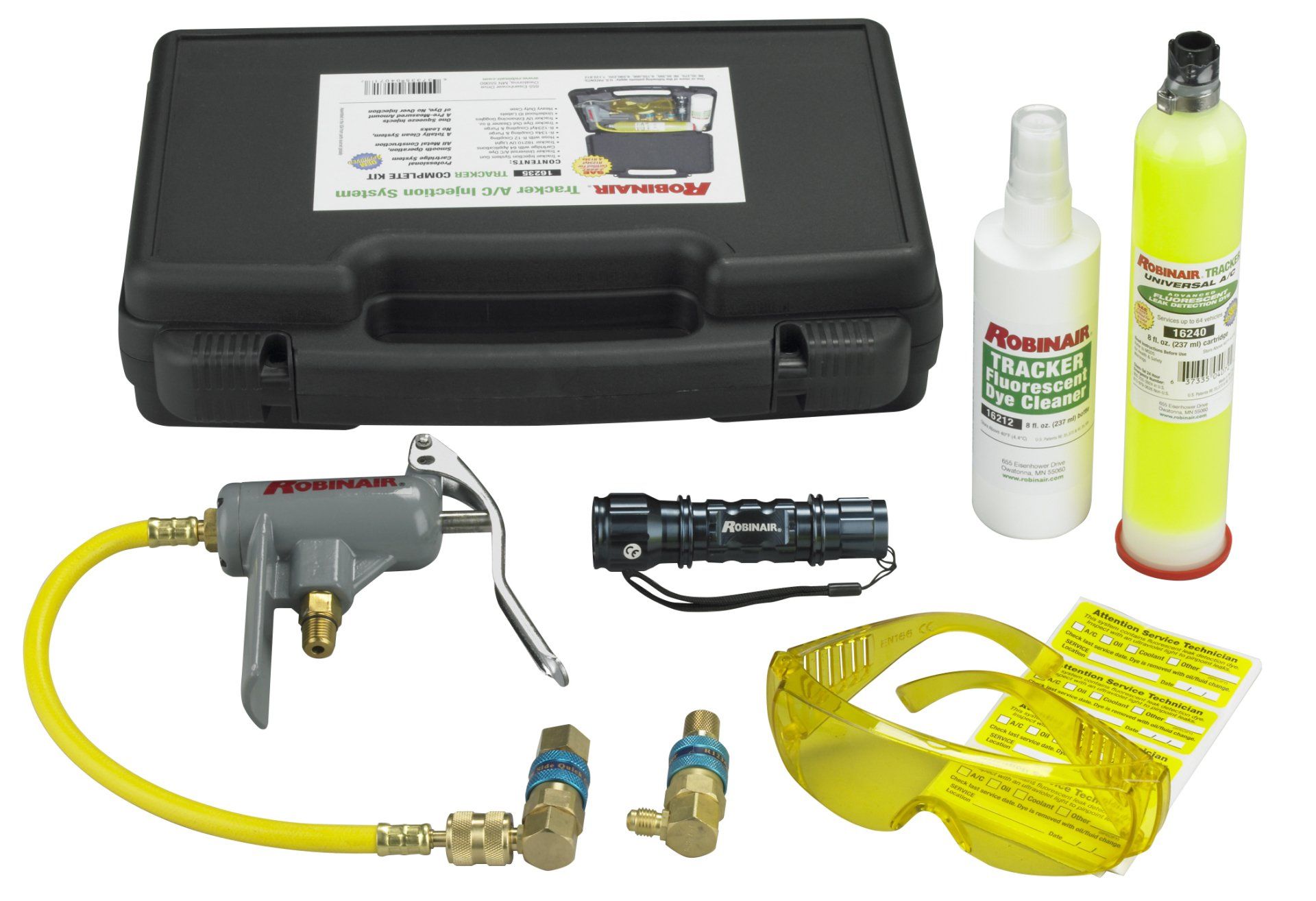

16235 - UV LEAK DETECTION

UV LEAK DETECTION
  • Meets SAE J2297 standard for use with both R-134a and R-1234yf.
  • The easiest and most accurate gun available today.
  • One squeeze injects a pre-measured amount (1/8 oz.) of dye. No more adding too much dye.
  • Brightest dyes in the industry, exceeds all industry performance standards.
  • Most powerful light in its class.
  • Fluorescent dye visible from up to 50ft away. (Light is only used in 16235 kit)

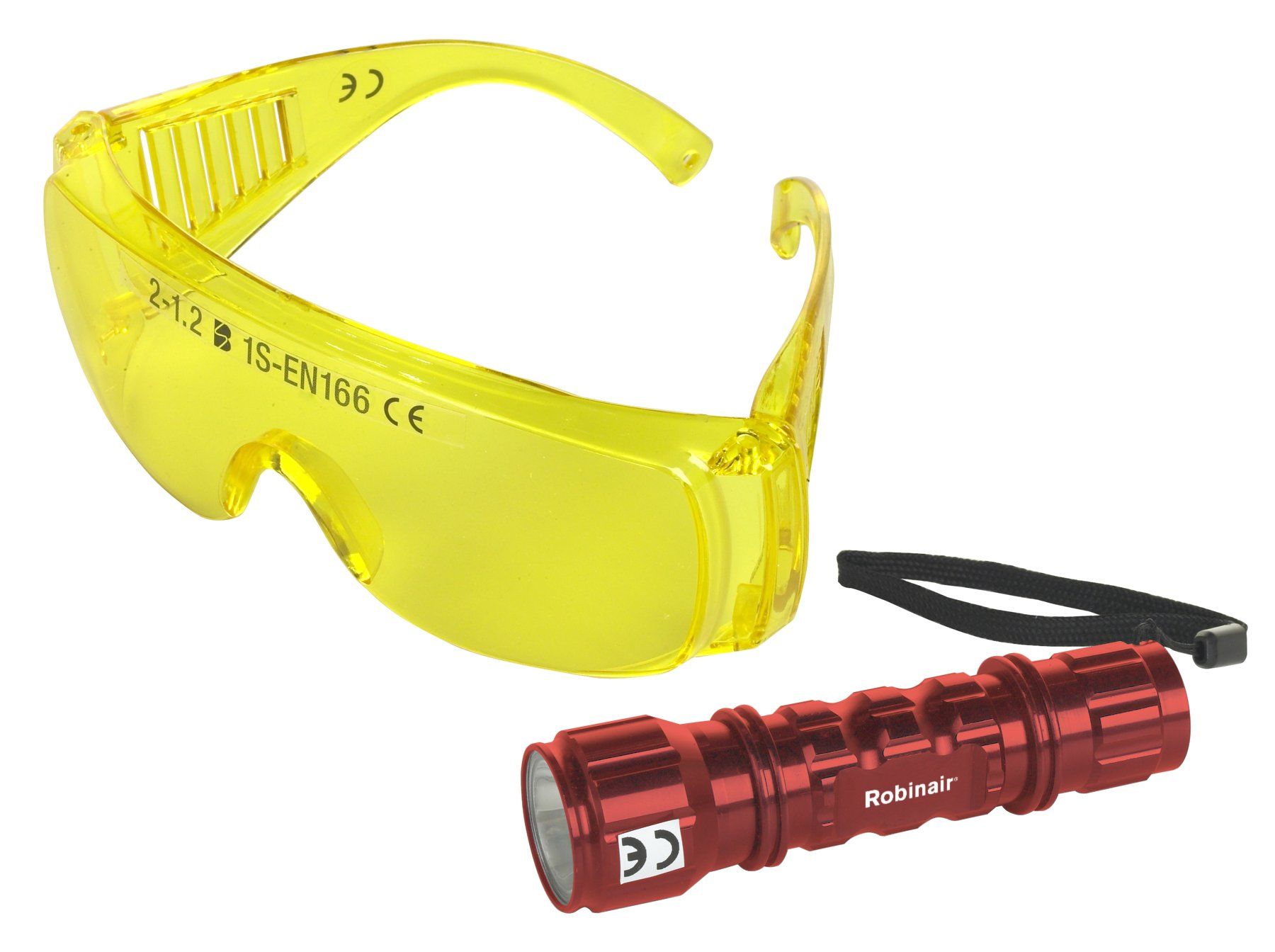

16215
Fluorescent light
UV glasses

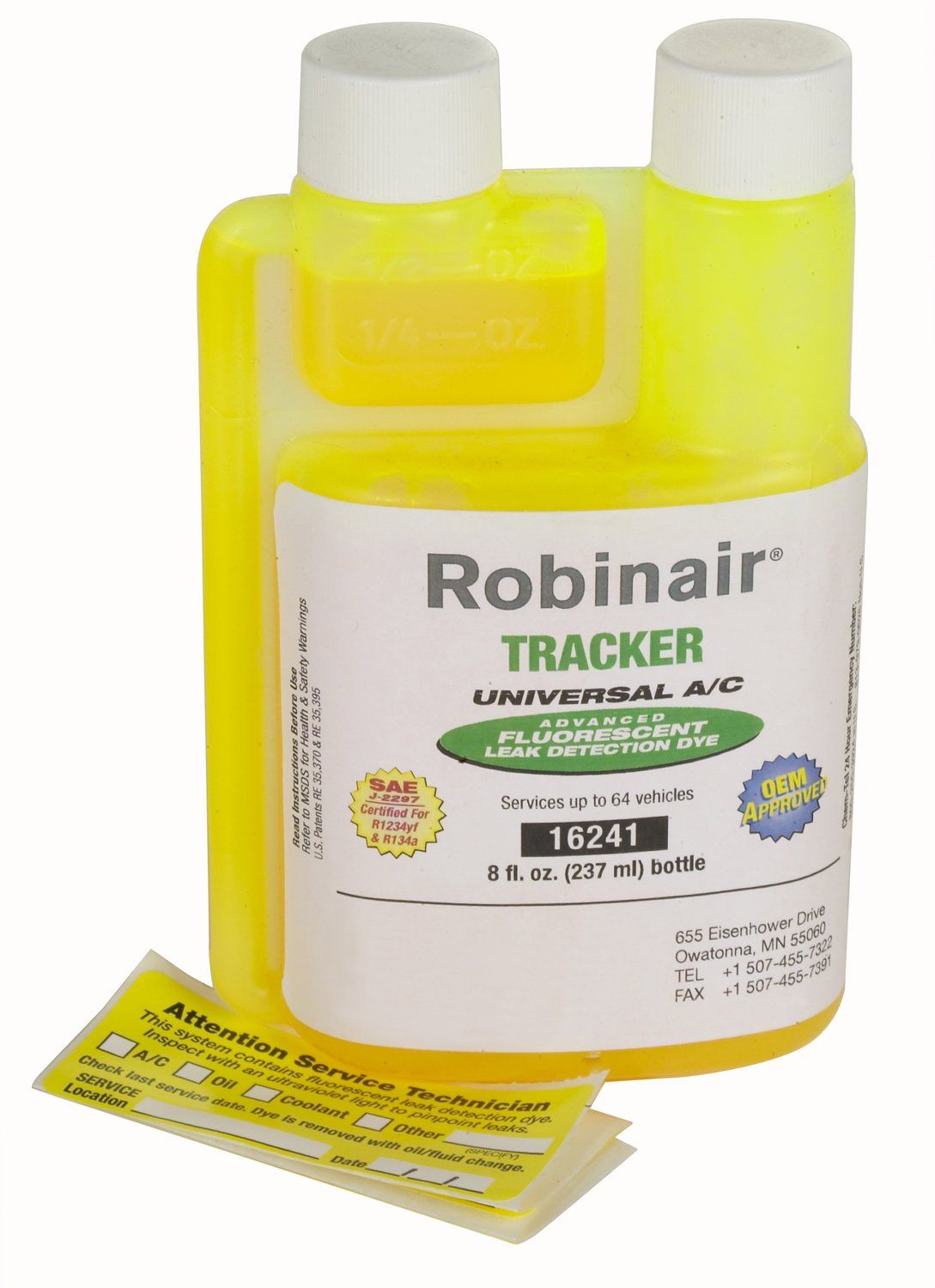

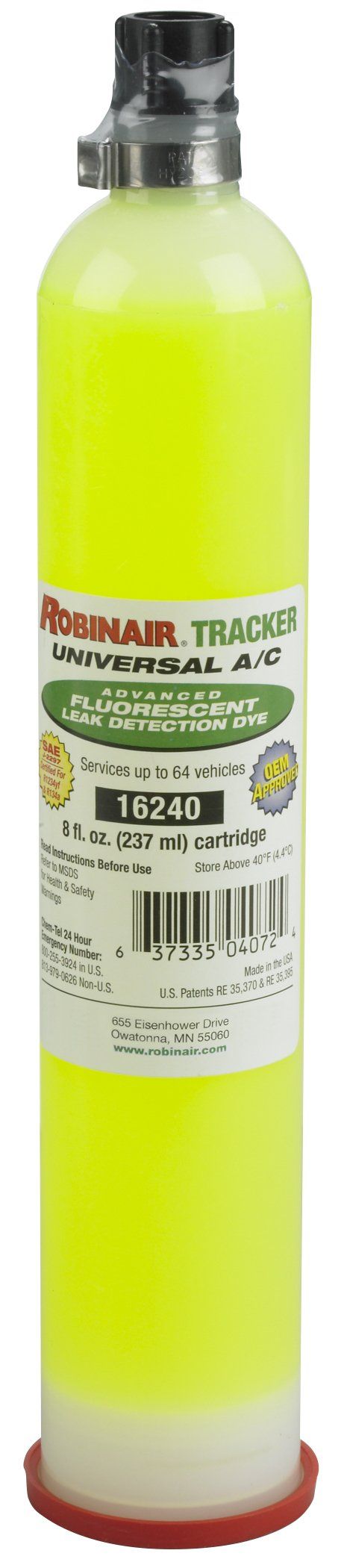

A/C FLUORESCENT DYES

  • Exceeds all industry performance standards.
  • Compatible with all materials found in a vehicle’s A/C system.
  • Meets the new SAE J2297 standard for use with both R-134a and R-1234yf.
  • REACH and CLP compliant.

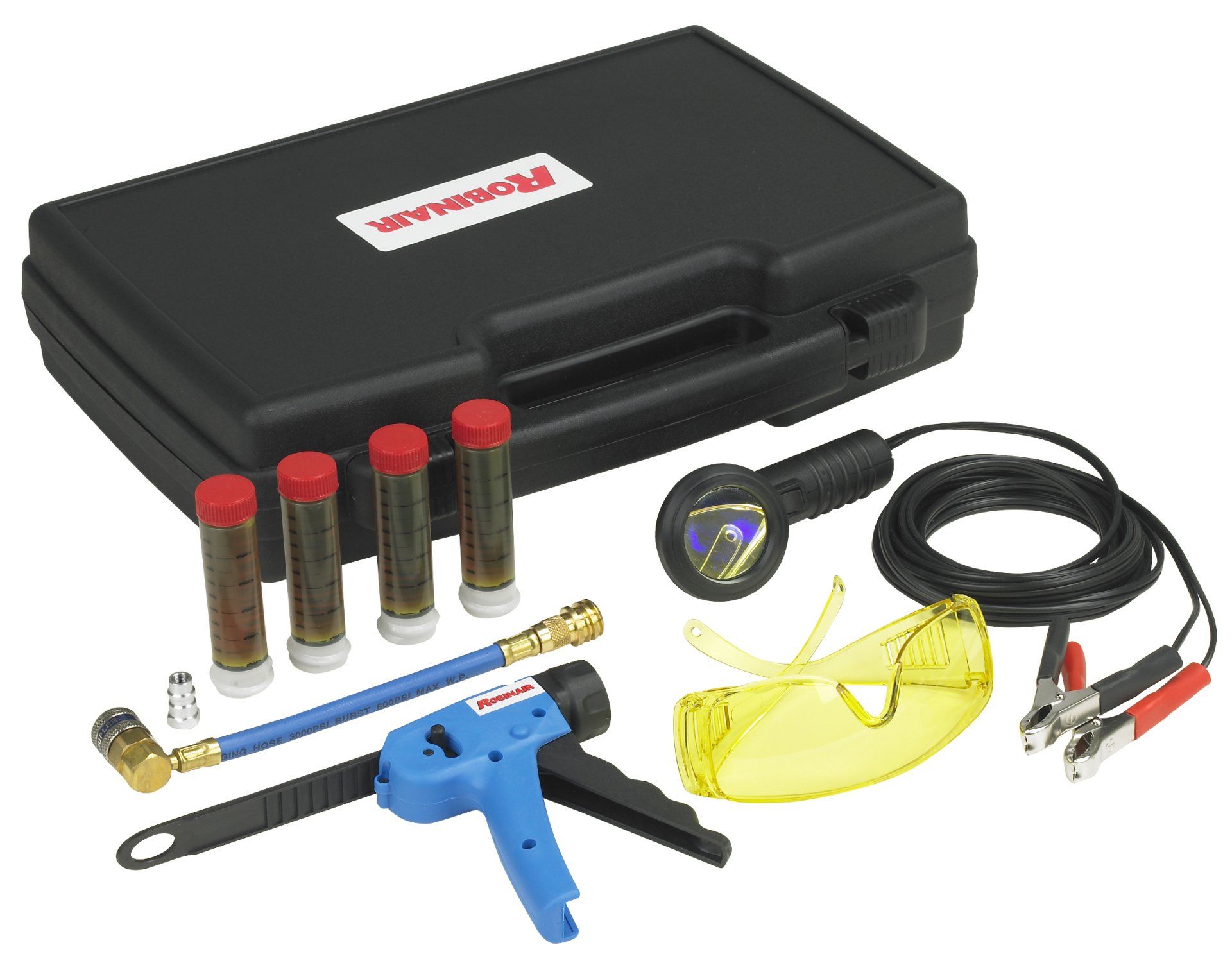

16350 - UV LEAK DETECTION

UV leak detection can be used for both automotive and HVAC-R systems, and dyes won’t harm the system.
  • High intensity beam makes even small leaks visible and is bright enough to be used in daylight.
  • Rugged case and a shock-absorbing mounting mechanism protect the lamp during use and storage.
  • UV bulb is rated for 3000 hours and is economical to replace.
  • Comes with a 15' (4.57 m) long cord with battery clips for automotive use or with a transformer for 115V operation.
  • Designed with super luminescence, so leaks are easy to spot, even small ones.
  • Won’t affect the viscosity of refrigerant lubricants and is safe for the entire A/C system.
  • Speeds service, since there’s no need to recover the charge, add dye, and recharge.
This UV leak detection kit includes: Powerful 50-watt/12-volt UV lamp with 15' cord and battery clips. Injection gun with R-134a hose and R-12 adapter. Four universal A/C dye twist-on cartridges (No. 16356). Enough dye for 20 applications (OEM-approved and SAE-certi ed dye). UV enhancing glasses with dye cleaner.

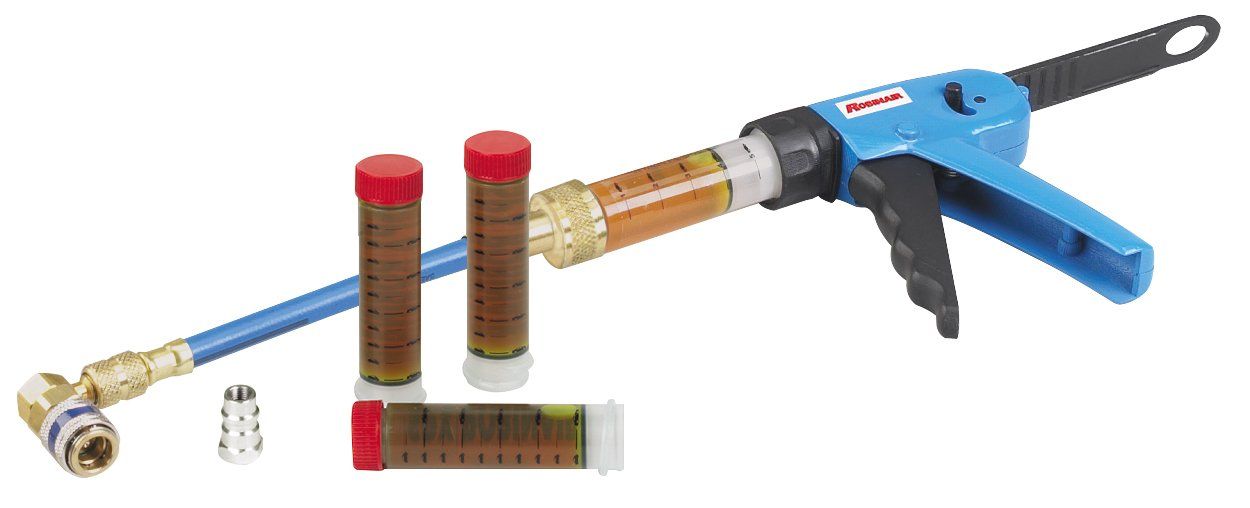

16355

UV injection kit includes: Injection gun with R-134a hose and R-12 adapter, four universal A/C dye twist-on cartridges (No. 16356, 1 oz./ 30 ml each), and service stickers.

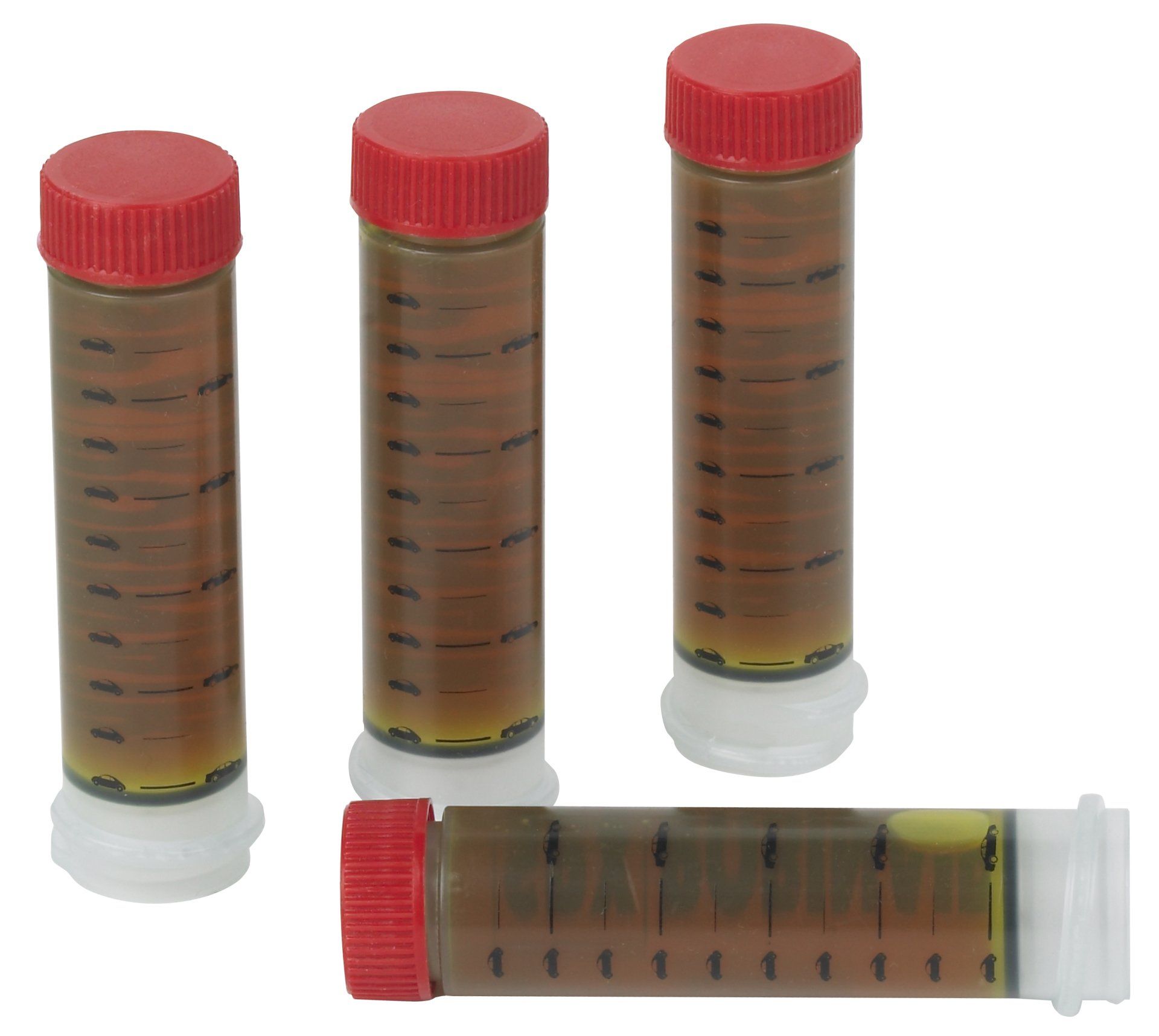

16356

Universal A/C dyes includes: Four 1 oz./30 m twist-on cartridges. Enough dye for 20 applications (OEM-approved and SAE-certi ed dye). For kit Nos. 16350, 16380, and 16355.

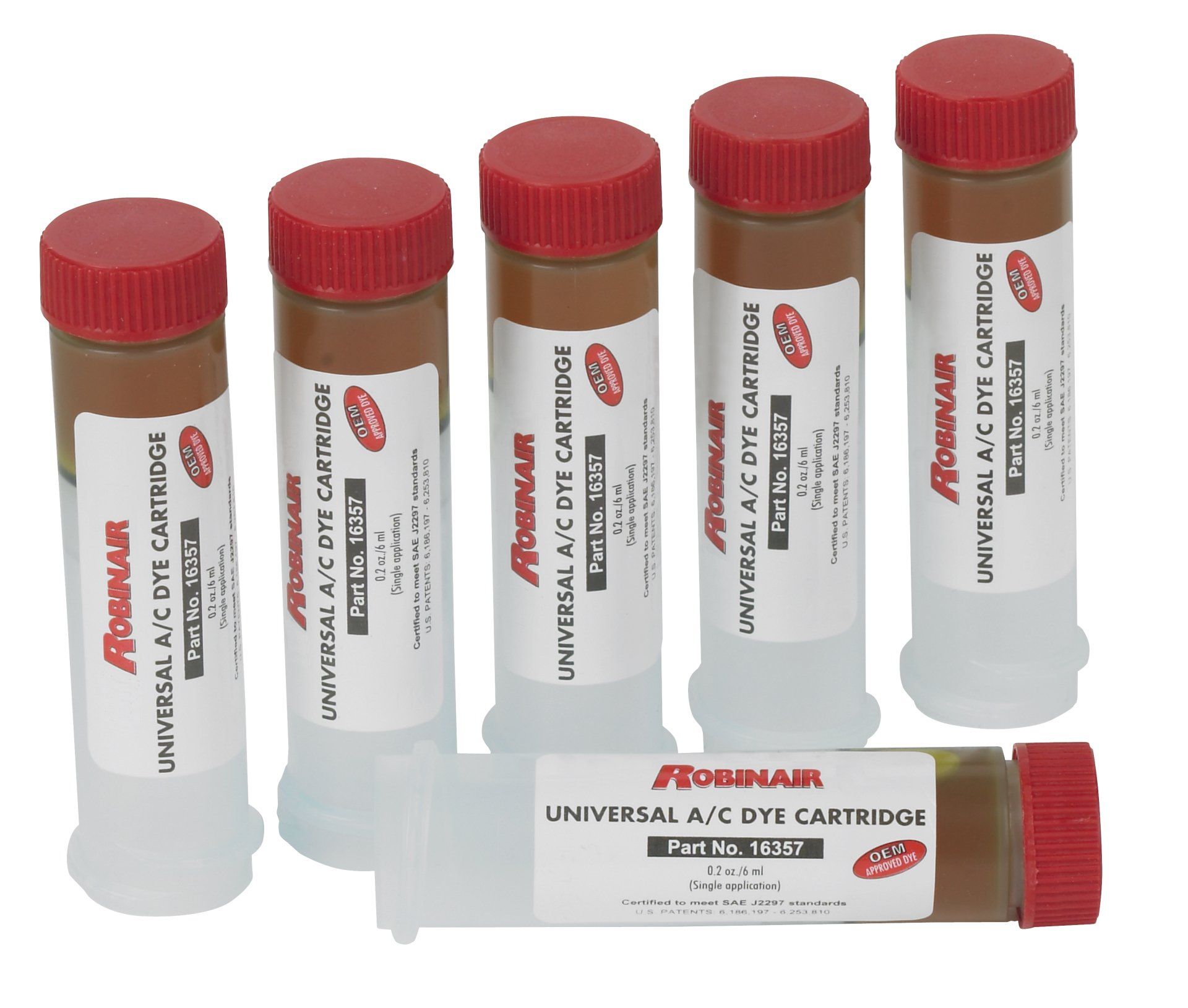

16357

Six 1/4 oz./7.5 ml twist-on cartridges. Enough dye for six applications (OEM-approved and SAE-certi ed dye). For kit Nos. 16350, 16380, and 16355.

MULTIPURPOSE DYE AND COOLANT FLUORESCENT DYE

  • Brightest dyes in the industry to help and leaks faster.
  • Exceeds all industry performance standards.
  • OEM backed and approved.
  • Solvent-free formula.
  • REACH and CLP compliant.

16244

Tracker Multi-purpose Dye
Six 1/4 oz. bottles, 6 applications

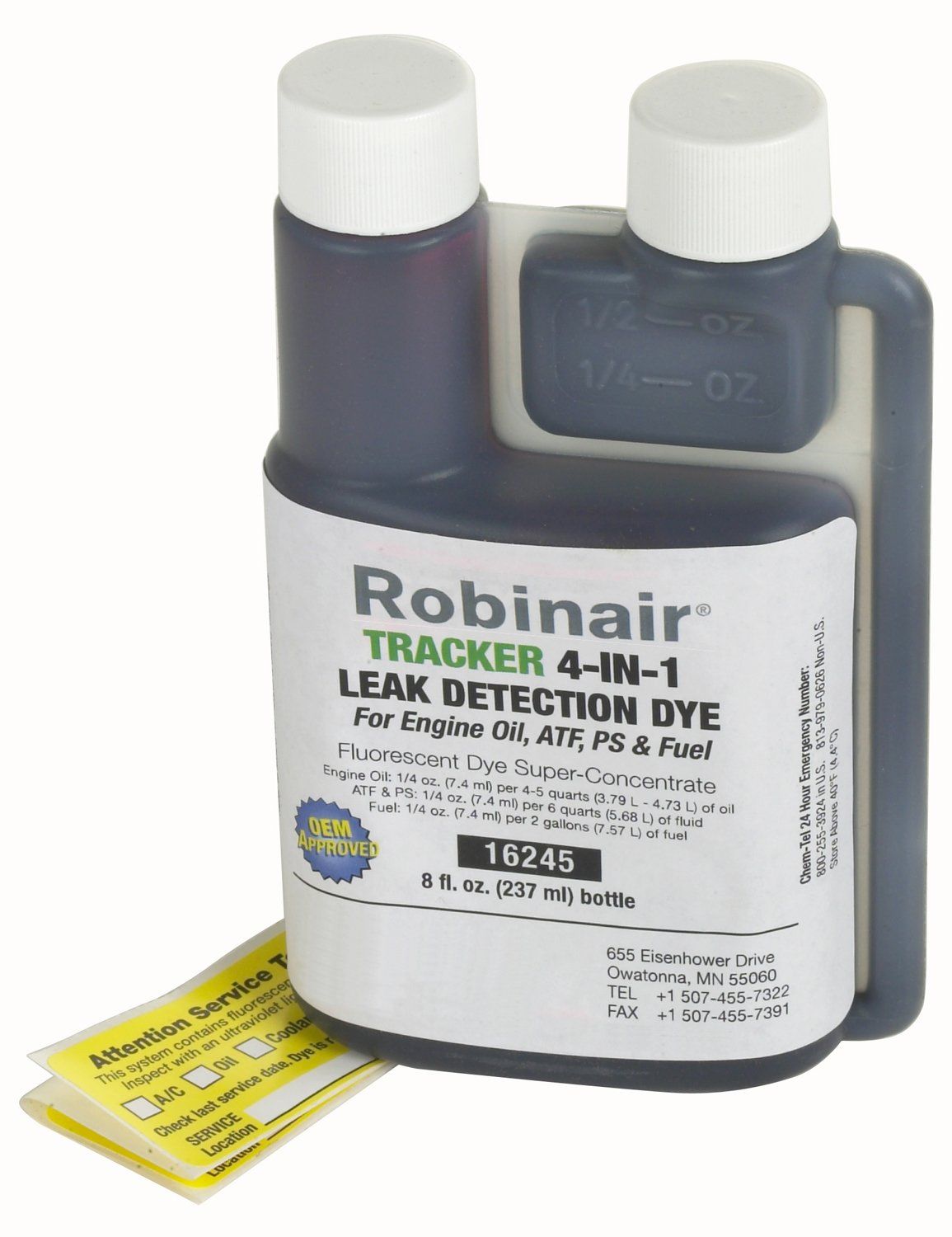

16245

Tracker Multi-purpose Dye
One 8 oz. bottle, 32 applications

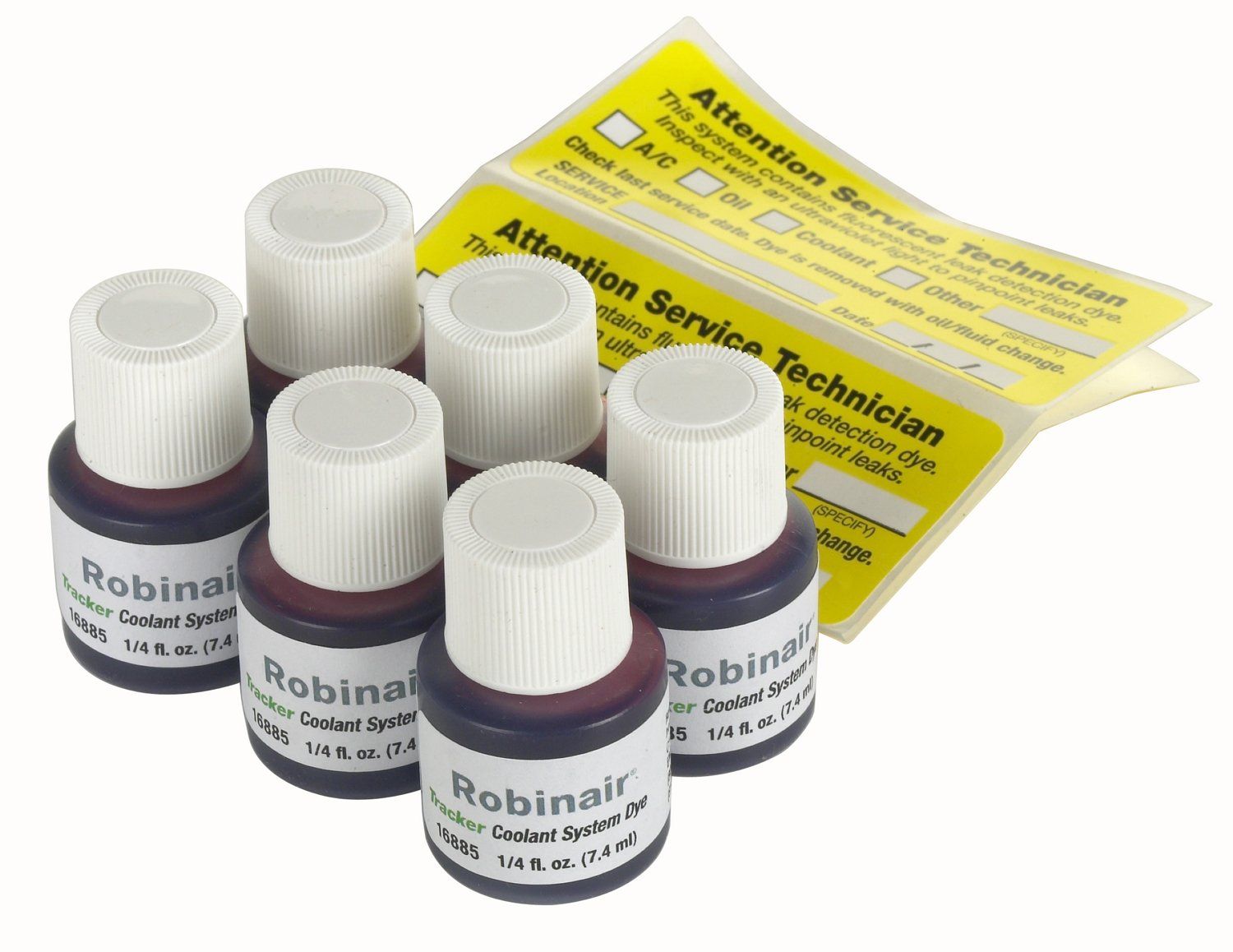

16885

Tracker Coolant Dye
Six 1/4 oz. bottles, 6 applications

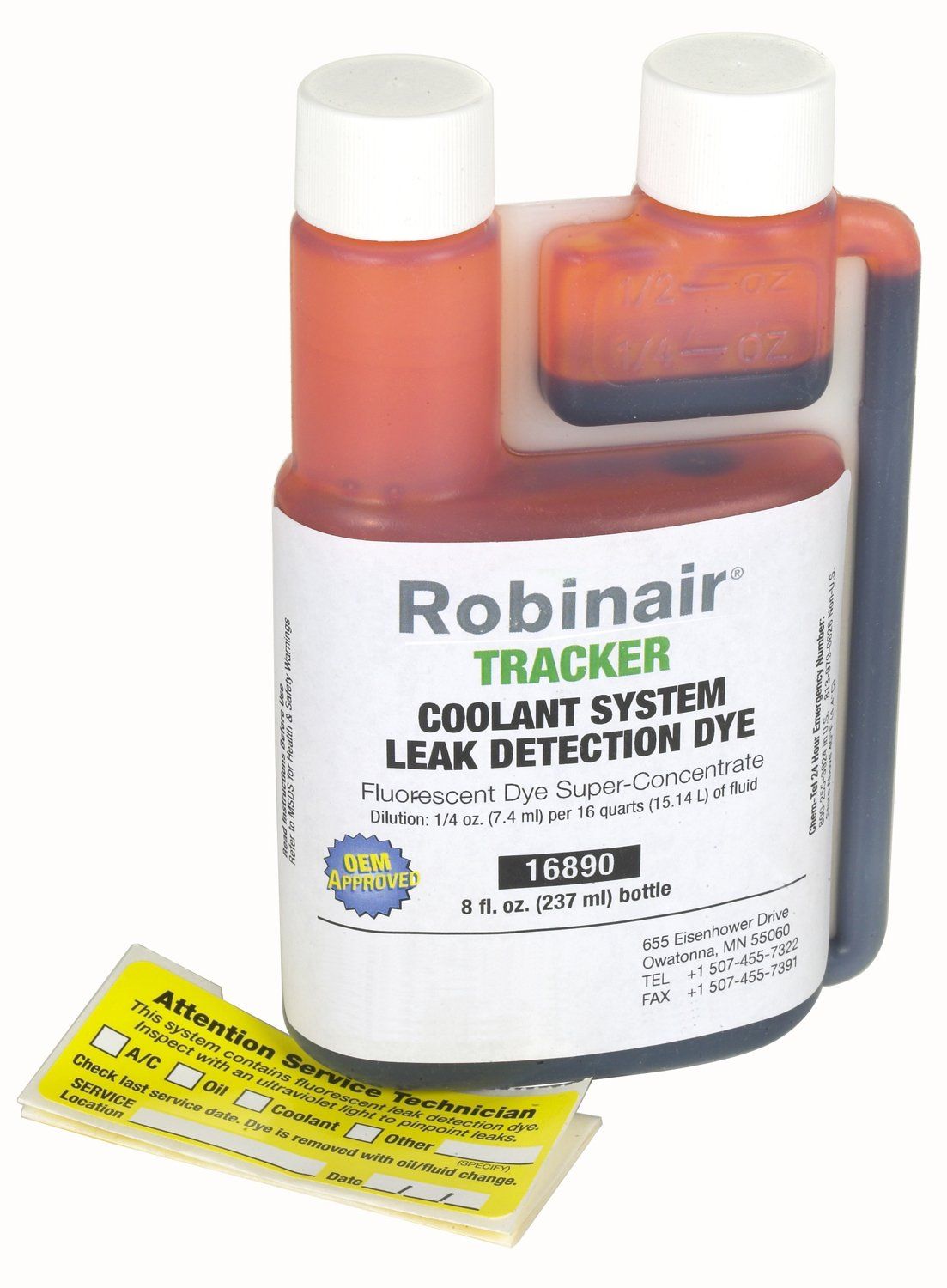

16890

Tracker Coolant Dye
One 8 oz. bottle, 32 applications
