FLOW RATES

FLOW RATES THROUGH INFINITY

Tube Diameter      CFM @125psi CFM @ 150psi CFM @ 170psi CFM @ 220psi
20mm (3/4") 5-Feb 39 42 48
25mm (1") 16-Mar 81 88 99
32mm (1-1/4") 25-May 158 171 189
40mm (1-1/2") 22-Sep 291 310 348
50mm (2") 20-Apr 526 565 627
63mm (2-1/2") 881 965 1047 1153
Flow rates are based on a 1psi pressure drop per 100ft fun of pipe and couplings in a "straight line."
For loop systems, flow rates can be doubled

TESTING:

Infinity fittings are tested in accordance with the requirements of ANSI B31.1 (American National Standards Institute) Power Piping Systems.

All Infinity products have been tested and exceed the requirements of ANSI B31.1

Infinity product provides a 5X safety factor above recommended safe working pressure/temperatures.

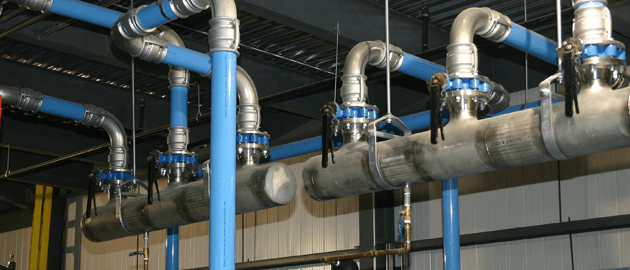

aluminum piping flow rates

EXAMPLE:

100ft run of 2" pipe flows 476cfm at 125 psi with a pressure drop of 1psi. If a system is designed in a loop configuration, a flow of 952cfm with a pressure loss of 1psi per 200ft of piping and couplings can be achieved. The 1psi pressure loss will only occur if the compressor system is flowing the maximum flow capacity of the piping selected.

Flows are measured at standard atmospheric conditions: 1013mbar (14.7psi) at 20°C - (68°F).

It is vital that the size of the piping between the compressors and the connection of the loop system can flow the full capacity of the combined compressor output.
