TOWABLES

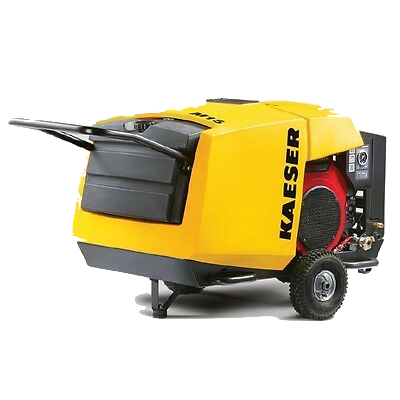

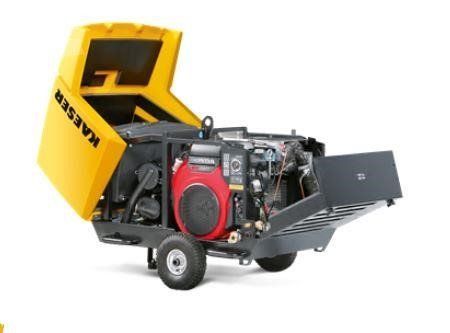

M15 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 50 | |
Free Air Delivery at 217 psig | - | |
DIESEL ENGINE | ||
Make | Honda GX630 | |
Power @ Full Load (hp) | 14.8 | |
Full Load Speed (rpm) | 3000 | |
Off Load Running Speed (rpm) | 2200 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 5.3 | |
Weight (lb.) | 445 | |
Outlets | 1 x 1/2" | |
DIMENSIONS | ||
L* x W x H (in.) | 42 1/2 x 31 1/2 x 31 |
M17 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 60 | |
Free Air Delivery at 217 psig | 35 | |
DIESEL ENGINE | ||
Make | Honda GX630 | |
Power @ Full Load (hp) | 17.4 | |
Full Load Speed (rpm) | 3300 | |
Off Load Running Speed (rpm) | 2400 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 5.3 | |
Weight (lb.) | 450 | |
Outlets | 1 x 1/2" | |
DIMENSIONS | ||
L* x W x H (in.) | 42 1/2 x 31 1/2 x 31 |

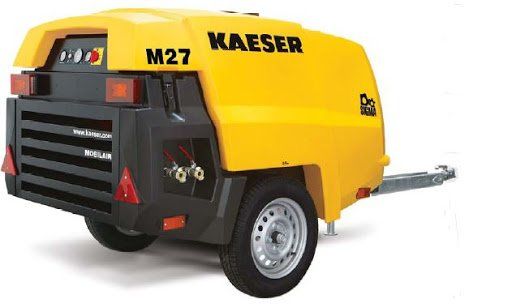

M27 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery (cfm) | 92 | |
Working Pressure (psig) | 100 | |
DIESEL ENGINE | ||
Make | Kubota D1105-B | |
Power @ Full Load (hp) | 21 | |
Full Load Speed (rpm) | 2850 | |
Off Load Running Speed (rpm) | 2100 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 10.6 | |
Weight (lb.) | 1224 | |
Outlets | 2 x 3/4" | |
DIMENSIONS | L* x W x H (in.) | 119 x 49 1/2 x 51 1/4 |

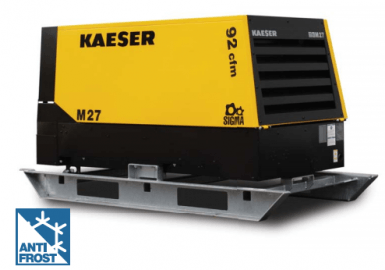

M27 Utility | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery (cfm) | 92 | |
Working Pressure (psig) | 100 | |
DIESEL ENGINE | ||
Make | Kubota D1105-B | |
Power @ Full Load (hp) | 21 | |
Full Load Speed (rpm) | 2850 | |
Off Load Running Speed (rpm) | 2100 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 10.6 | |
Weight (lb.) | 1267 | |
Outlets | 2 x 3/4" | |
DIMENSIONS | L* x W x H (in.) | 80 x 39 1/4 x 42 1/4 |

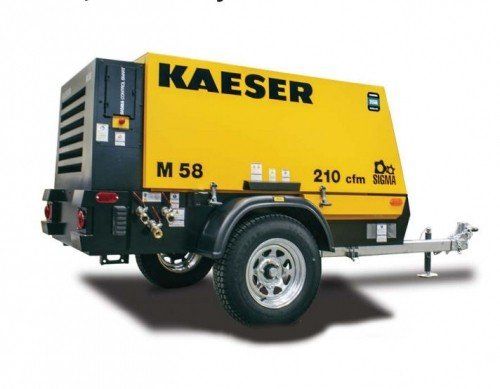

M58 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 210 | |
Free Air Delivery at 145 psig (cfm) | 175 | |
Free Air Delivery at 175 psig (cfm) | - | |
Free Air Delivery at 200 psig (cfm) | - | |
DIESEL ENGINE | ||
MAKE | Kubota V2403-CR-E4B | |
Power @ Full Load (hp) | 48 | |
Full Load Speed (rpm) | 2600 | |
Off Load Running Speed (rpm) | 1800 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 28 | |
Wt. (lb.) | 2590 | |
Outlets | 2 x 3/4" / 1 x 1" | |
DIMENSIONS | ||
L* x W x H | 145 x 68 x 62 |

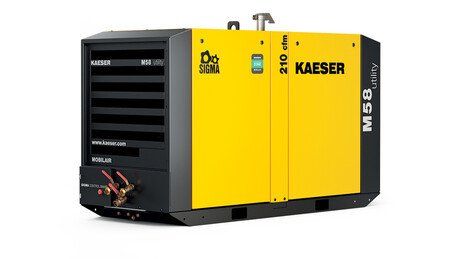

M58 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 210 | |
Free Air Delivery at 145 psig (cfm) | 175 | |
Free Air Delivery at 175 psig (cfm) | - | |
Free Air Delivery at 200 psig (cfm) | - | |
DIESEL ENGINE | ||
MAKE | Kubota V2403-CR-E4B | |
Power @ Full Load (hp) | 48 | |
Full Load Speed (rpm) | 2600 | |
Off Load Running Speed (rpm) | 1800 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 28 | |
Wt. (lb.) | 2043 | |
Outlets | 2 x 3/4" / 1 x 1" | |
DIMENSIONS | ||
L* x W x H | 84 5/8 x 33 1/8 x 55 |

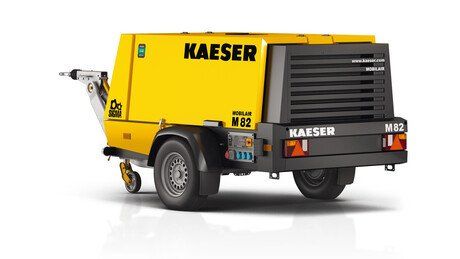

M82 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 295 | |
Free Air Delivery at 145 psig (cfm) | 240 | |
Free Air Delivery at 175 psig (cfm) | 215 | |
Free Air Delivery at 200 psig (cfm) | 195 | |
DIESEL ENGINE | ||
MAKE | Kubota V3307-CR-T | |
Power @ Full Load (hp) | 73 | |
Full Load Speed (rpm) | 2400 | |
Off Load Running Speed (rpm) | 1900 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 37 | |
Wt. (lb.) | 3437 | |
Outlets | 3 x 3/4" / 1 x 1 1/2" | |
DIMENSIONS | ||
L* x W x H | 160 x 71 x 60 |

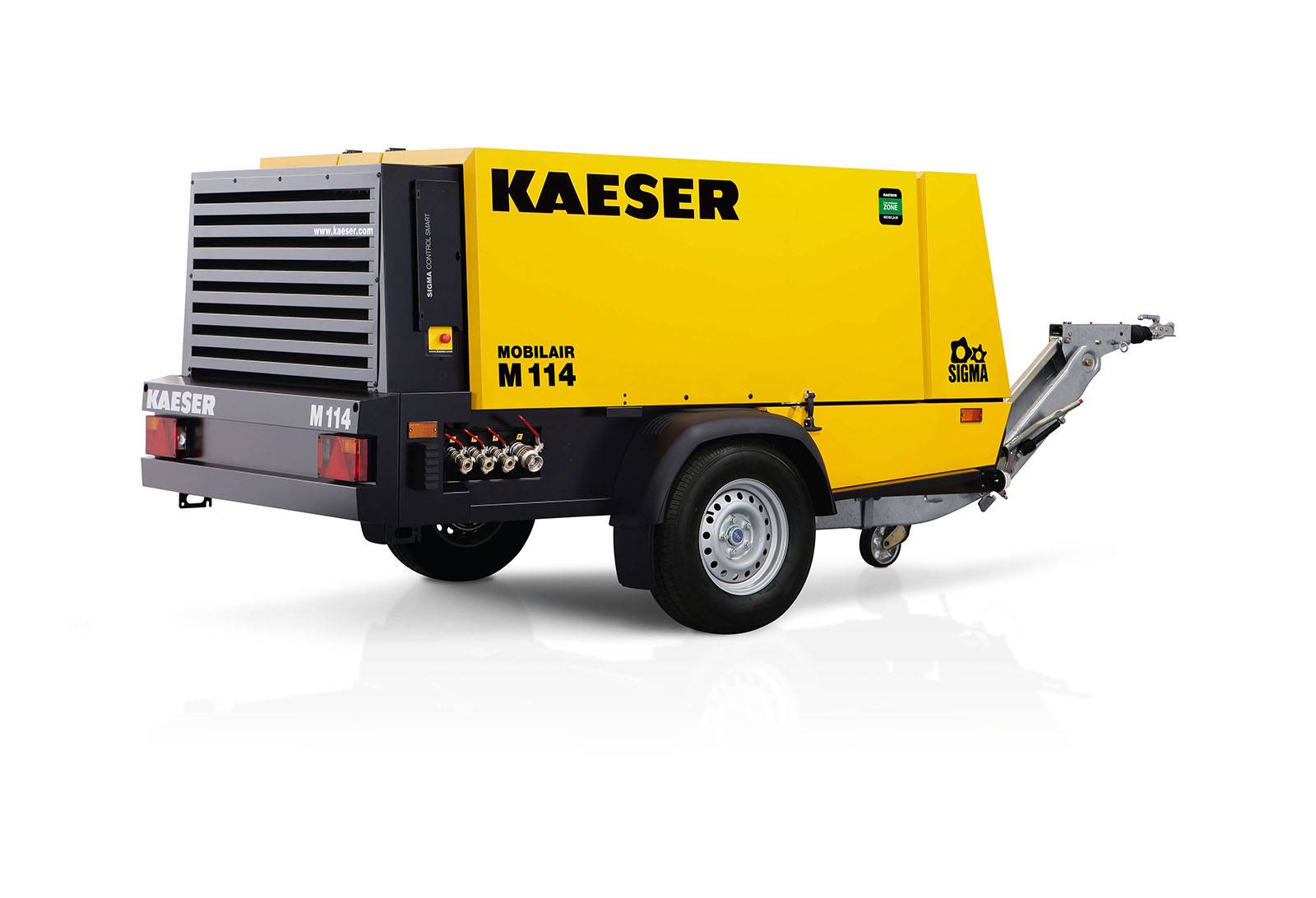

M114 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 375 | |
Free Air Delivery at 145 psig (cfm) | 345 | |
Free Air Delivery at 175 psig (cfm) | 295 | |
Free Air Delivery at 205 psig (cfm) | 265 | |
DIESEL ENGINE | ||
MAKE | Deutz TCD 3.6L4 | |
Power @ Full Load (hp) | 103 | |
Full Load Speed (rpm) | 2200 | |
Off Load Running Speed (rpm) | 1600 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 45 | |
Wt. (lb.) | 4111 | |
Outlets | 3 x 3/4" / 1 x 1 1/2" | |
DIMENSIONS | ||
L* x W x H | 191 1/2 x 73 1/2 x 63 |

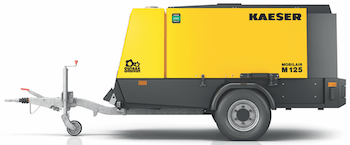

M125 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 100 psig (cfm) | 405 | |
Free Air Delivery at 145 psig (cfm) | 405 | |
Free Air Delivery at 175 psig (cfm) | 380 | |
Free Air Delivery at 205 psig (cfm) | 342 | |
DIESEL ENGINE | ||
MAKE | Deutz TCD 4.1 L04 | |
Power @ Full Load (hp) | 140 | |
Full Load Speed (rpm) | 2200 | |
Off Load Running Speed (rpm) | 1500 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 45 | |
Wt. (lb.) | 4580 | |
Outlets | 3 x 3/4" / 1 x 1 1/2" | |
DIMENSIONS | ||
L* x W x H | 188 x 74 x 68 |

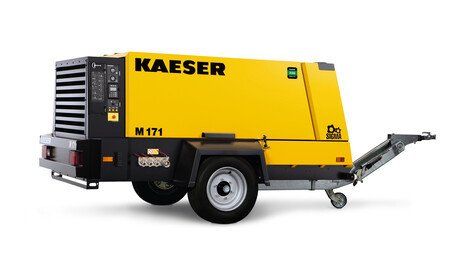

M171 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 125 psig (cfm) | 600 | |
Free Air Delivery at 145 psig (cfm) | 550 | |
Free Air Delivery at 175 psig (cfm) | 475 | |
Free Air Delivery at 205 psig (cfm) | 405 | |
DIESEL ENGINE | ||
MAKE | Deutz TCD 6.1 L06 | |
Power @ Full Load (hp) | 145 | |
Full Load Speed (rpm) | 1800 | |
Off Load Running Speed (rpm) | 1300 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 53 | |
Wt. (lb.) | 5942 | |
Outlets | 3 x 3/4" / 1 x 2" | |
DIMENSIONS | ||
L* x W x H | 200 x 82 x 71 |

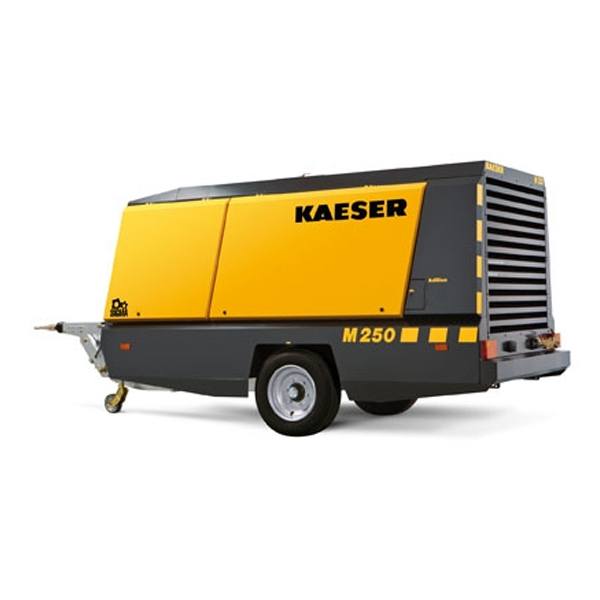

M250 | ||
---|---|---|
COMPRESSOR | ||
Free Air Delivery at 125 psig (cfm) | 900 | |
Free Air Delivery at 145 psig (cfm) | 875 | |
Free Air Delivery at 175 psig (cfm) | 795 | |
Free Air Delivery at 205 psig (cfm) | 705 | |
DIESEL ENGINE | ||
MAKE | Mercedes-Benz OM926LA | |
Power @ Full Load (hp) | 288 | |
Full Load Speed (rpm) | 1800 | |
Off Load Running Speed (rpm) | 1200 | |
PACKAGE | ||
Fuel Tank Capacity (gal) | 66 | |
Wt. (lb.) | 7760 | |
Outlets | 3 x 3/4" / 1 x 2" | |
DIMENSIONS | ||
L* x W x H | 225 x 77 3/4 x 89 1/4 |
